Offers 14 different programmable flash modes. Dimensions: 38 mm x 16 mm x 11 mm.

Axel Joost Elektronic, Brake 2 Flash module

#567429

Stock:Yes

This safety module checks the neutral and sidestand/jiffy switch inputs, to enable or disable the ignition or starter motor. The ignition remains on when the side stand is out, so the bike can be started. But when the bike is put in gear the ignition will be killed if the side stand is not in.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: Black ABS waterproof molded
- Input voltages range: 7 - 18 Volt
- Connections: Inputs 0.14mm², Outputs 0.5 mm²
- Max. Output current: 5 Ampere for brake and indicator outpus
- Maximum ambient temperature: 80 degrees Celsius

Axel Joost Elektronik, Mini Safety Box module

#954155

Stock:Yes

This module can help simplify your dash for a much cleaner look. This small module (installs inside headlamp or even inside the handlebar) can power a 3-color LED to show turn signal, high beam, neutral or oil pressure LED indicators. Up to 4 indicators can be clearly displayed at the same time on a single 3-color LED showing Red, green, blue or orange. Even 2 or 3 signals can be shown simultaneously.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7 - 18 Volt
- Connections: 0.14 mm², 20 cm
- Maximum ambient temperature: 80 degree Celsius

Axel Joost Elektronik, Minimal Indicator module

#954152

Stock:Yes

This Module controls the automatic switching from DLR (Daytime Running Light) to low beam headlamp through a sensor. The switch time from DLR to low beam is less than 0.5 seconds, like when driving into a tunnel. Switch time duration from low beam to DLR is a slower 3 seconds, so light reflections of other traffic or street lamps will not influence low beam. Sensitivity can be adjusted and stored in 60 steps.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Sensor: 4.1mm LDR cell, front surface encapsulated against moisture
- Connections: 0.14 qmm for input, 0.75 qmm for power outputs
- Maximum output power: 2 x 60 Watt

Axel Joost Elektronik, Daytime Running Light switch

#954138

Stock:Yes

RFID (Radio Frequency Identification) allows wireless ignition-on & starting on 2-8 centimeters distance with a pushbutton equipped tag. The Easy Keyless RFID comes with 3mm mounting holes and, in contrast to some other RFID units, in stand-by mode it hardly uses any power that could drain your battery. Only after the 'tag' is placed near the Antenna is Easy Keyless RFID unit activated and the Red LED will turn to Blue, and the power to the Bike is switched on. Dimensions: 50x50x15mm.

Axel Joost Elektronik, Easy RFID ignition switch

#567427

Stock:Yes

The Rear Light EU-V is a conversion module for vintage bikes without hazard light / emergency flasher function. It converts the two signals from the original turn signal/brake light combination into four separate outputs for upto 2 (parallel) brake lights/taillights and turn signals. A conversion of an imported US bike to the EU regulations can be done much quicker and more economical. With the brakelight dim function, the brakelight is dimmed to 30 % brightness, only when the brake is not activated. A brakelight flasher function can optionally be activated to show a 3x fast warning flash before it stays lit.
- Dimensions: 40 mm x 25 mm x 12,5 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7 - 18 Volt
- Connections: Inputs 0,14 mm², Outputs 0,5 qmm
- Output power: Max. 50 Watt / Output
- Maximum ambient temperature: 80 degree Celsius

Axel Joost Elektronik, Rear Light EU-V conversion module

#954148

Stock:Yes

Some late model bikes have the LED converter built into the turn signal relay. Sometimes this results in a turn signal voltage between 6 and 9 Volt. This turn signal booster increases these low voltages from the OEM flasher relay to the required 12 Volt and is installed between the OEM turn signal relay and the aftermarket turn signals. The integrated 0.8W load equalizer ensures a correct flashing rate for most bikes.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: Shock resistant ABS waterproof molded
- Supply voltage range: 6 - 20 Volt
- Connections: Inputs 0,14 mm², Outputs 0,5 qmm
- Maximum current: 5 Ampere per output
- Maximum ambient temperature: 80 degree Celsius
Note: When the flasher frequency is still too high after the installation, you will need to wire 2 resistors between the 2 inputs and ground.

Axel Joost Elektronik, Flasher Booster

#954144

Stock:Yes

This fuel reserve indicator module will work with every potentiometer based fuel sensor. You can store 2 different fuel values. The LED flashes if the fuel amount is below of the first value. The LED is continuously lit when the fuel value is below of the second value. The module is not sensitive for an increasing or decreasing resistance of the sensor when fuel is getting low.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7 - 18 Volt
- Connections: Inputs 0.14 mm², 20 cm
- Maximum ambient temperature: 80 degree Celsius

Axel Joost Elektronik, Fuel Indicator module

#954153

Stock:Yes

This module is used to automatically switch off a light, like a marker light or turn signal daylight running light (DRL), for better visibility of the turn signal during daytime. The module is very small and can be installed almost anywhere, including inside most handlebars. The module can also be used to cancel the marker/running light function of the turn signals.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7 - 18 Volt
- Connections: Inputs 0.14 mm², Outputs 0.75 qmm
- Maximum current: 5 Ampere per output
- Maximum ambient temperature: 80 degree Celsius

Axel Joost Elektronik, Marker light X

#954147

Stock:Yes

The Multi Flasher C (C for 'constant frequency') is a turn signal relay that converts any turn signal frequency, or even a troublesome permanent non-flashing signal of the OEM turn signal relay, to a steady 90 flashes per minute.
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7 - 18 Volt
- Connections: Inputs 0.14 mm², Outputs 0.75 qmm
- Maximum current: 5 Ampere per output
- Maximum ambient temperature: 80 degree Celsius
Note: This module is not suitable for CAN bus equipped bikes. The CAN bus system could generate an error message in some bikes. In this case the 954146 Axel Joost 'Vari Load' is the better solution.

Axel Joost Elektronik, Multi Flash C

#954143

Stock:Yes

Many electrical problems on a bike are the result of a bad ground connection to the battery. The frame is often used as a minus pole with varying results due to rust, paint or dirt at the contact point. The Gnd-Split is a 4-pin divider that can be installed directly to the minus pole of the battery allowing the installation of 4 ground cables for a perfect trouble-free connection for years to come.
- Splits up to 4 cables with a maximum size of AWG14 (2.5 mm2)
- Prevents bad ground connections
- Dimensions: 22 x 22 x 16mm

Axel Joost Elektronik, GND split. Minus pole splitter

#954164

Stock:Yes

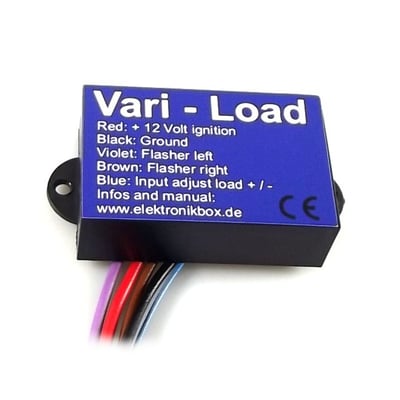

Digital 50-step adjustable load equalizer. It is simply connected to the turn signals. The load is 50-step variable by touching the 'programming cable' to ground (less load) or to positive +12V (more load), after which it is automatically saved. This will make this set-up compatible with any requirement of the bike to prevent the ECU triggering trouble codes or any issue with the OEM turn signal relay.
- Dimensions: 56 mm x 37 mm x 17 mm
- Body material: ABS waterproof molded
- Input voltage range: 7 - 18 Volt
- Connections: Inputs 0,14 mm², Outputs 0,75 qmm
- Output power range: Between 2 x 1 Watt and 2 x 15 Watt
- Maximum ambience temperature: 80 degree Celsius.
Note: This module should be used with turn signals that pull a maximum of 10W total.
Note: The Vari Load can also be used as a tool in the workshop. You can adjust to required load value with the Vari Load on a customer's bike. Then you will then know what resistor to use for that specific application. A printed table with resistors is listed the manual.

Axel Joost Elektronik, 'Vari Load' adjustable load equalizer

#954146

Stock:Yes

Used to provide a neutral gear indication on any new speedometer. The K Neutral uses the 3 gear switches found on BMW K motorcycles. The module has with a power output for both the neutral indicator LED and the starter relay. It therefore also allows using the starter relay (start the bike) without the need to pull the clutch.
- Dimensions: 38 mm length x 16 mm wide x 11 mm height
- Body material: shock resistant ABS plastic, waterproof poured raisin
- Power consumption: approx. 20 mA
- Case Color: Black
- Connections: 0.14 qmm and 0,5 qmm, 20 cm
- Maximum ambient temperature: 80 degree Celsius
- Input voltage range: 6 - 18 Volt

Axel Joost Elektronik, BMW K Neutral

#954168

Stock:Yes

The Lunchbox Adapter allows the connection of several new speedos on the old harness connector what was connected to the old BMW speedo in older K models. The adapter makes the conversion of the old harness signals to a modern speedo easy. 10 output cables provide all necessary signals. The neutral signal is now compatible with modern speedos and the virtual load for the alternator is built-in. Fuel reserve signal for upto 1985 models is integrated.
- Dimensions: 51 mm length x 51 mm wide x 15 mm height w/o connectors
- Body material: Shock resistant ABS plastic, waterproof poured raisin
- Case Color: Black
- Connections: 0,14 qmm, 20 cm to the new speedo, 2 x 12 pin to original harness
- Maximum ambient temperature: 80 degree Celsius
- Input voltage range: 7 - 18 Volt

Axel Joost Elektronik, BMW K 'Lunchbox Adapter'

#954165

Stock:Yes

Many speedometers have just one turn signal indicator LED for the turn signals. The Flash Merger combines left & right turn signal output to the single indicator in your speedo so it will work correctly. The maximum load is 100 mA or 1.2 Watt.
- Dimensions: 14 mm x 9 mm x 5 mm
- Body material: ABS waterproof injection molded
- Input voltage range: 7 - 18 Volt
- Connections: 0.14 qmm, 10 cm long
- Maximum current: 100 mA
- Maximum power: 1.2 Watt

Axel Joost Elektronik, Flash Merger

#954145

Stock:Yes

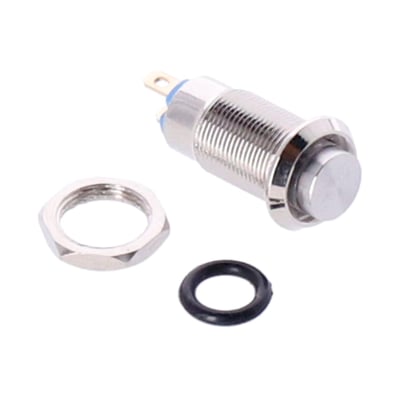

Stainless steel on/off switch in push button style, 8mm threaded. Small, discrete and not just perfect to operate Axel Joost Elektronik components. Can be installed directly into the handlebar or virtually any other place. Perfectly compatible with gloves.

Axel Joost Elektronik, 8mm switch

#954159

Stock:Yes

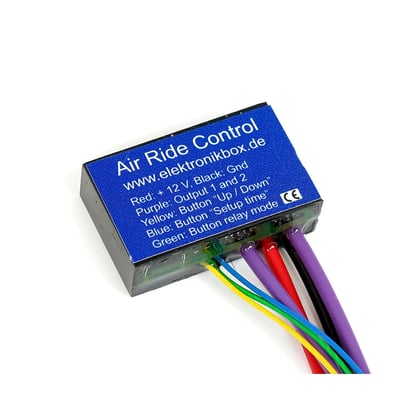

The Air Ride Control will control both the compressor and the release valve with a single pushbutton touch. It is easily on-bike programmable so the pump will run as long as the rider has pre-programmed, to the rider's preferred ride height. Max 350W peak and 200W continuous from 12V connection. Dimensions: 40mm x 25mm x 12.5mm.

Axel Joost Elektronik, air ride control unit

#567425

Stock:Yes

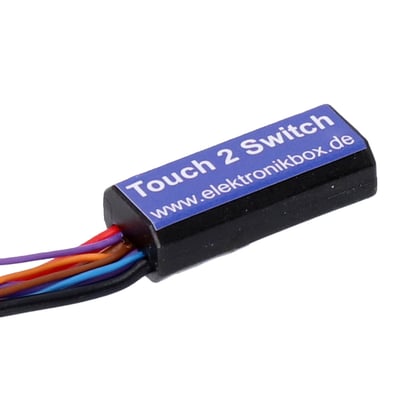

Perfect to switch lights high-low, on-off, ignition on-off, handlebar grip heating etc. This Axel Joost Touch 2 Switch is a 2 channel power relay that is controlled by 2 momentary push buttons. Every press on a button will toggle the corresponding output between on and off, no matter if they are wired to plus or minus. Or use the module as a standard (low beam /high beam) headlamp relay. Just wire the 2 thin input cables together to one push button. The first press on the push button will switch on output 1 (low beam). Every further press on the button toggle the between 2 outputs. The outputs can handle 70 Watt peak and 50 Watt continuous load. The module fits inside almost every handlebar due to its small size.
- 2 channel relay
- Pushbutton controlled on-off switching
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 6 - 18 Volt
- Connections: Inputs 0.14 mm², Outputs 0.75 mm²
- Maximum current: 7 Ampere / 70 Watt per output
- Maximum ambient temperature: 80 degrees Celsius

Axel Joost Elektronik, Touch 2 Switch. 2 channel relay

#954137

Stock:Yes

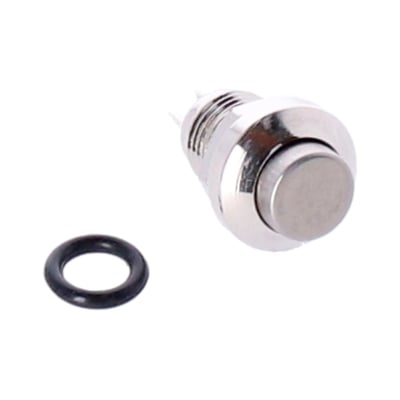

Stainless steel momentary pushbutton, 8mm threaded. Small, discrete and not just perfect to operate Axel Joost Elektronik components. Can be installed directly into the handlebar or virtually any other place. Perfectly compatible with gloves.

Axel Joost Elektronik, 8mm push button

#954158

Stock:Yes

Push button controlled switching between high and low beam. With two power outputs of 60W each. Another option is switching on/off 120W total. Works with 7-18 Volt. Dimensions: 38mm x 16mm x 11mm.

Axel Joost Elektronik, Mini Headlamp Relay

#567431

Stock:Yes
