The same oil cooler that is used in high-quality Jagg kits. These unit is perfect for the customizer, the builder and racer for universal custom applications. Includes oil cooler only without mounting hardware.
Jagg

Jagg, oil cooler core only. 1390 Slimline series

#970758

Stock:No

For mounting oil coolers firmly and also isolating from vibration. Can be used for mounting anything on tubular frame tubes.
Jagg

Jagg, universal oil cooler clamp. 1-1/2", black

#970748

Stock:Yes

Black Diamond. Non-fan assisted. Vertical frame mounted. Kit includes the oil cooler, mounting hardware, thermostat equipped offset oil filter adapter, oil hose and oil hose clamps. Nothing else required for a successful installation. Note: Vertical frame mounted oil coolers may not fit models with lower fairings.
Jagg

Jagg, oil cooler kit. Vertical mount, 6 row, Deluxe Diamond

#970773

Stock:Yes

4" (10.2cm) diameter. Pull through system. Direct replacement for Jagg fan assisted oil cooler kits. Also perfect for many custom applications. Note: For optional Jagg miniature fan switch see 970705 for 180 °F (82.2 °C) switch or 970763 for 190 °F (87.8 °C) switch.
Jagg

Jagg, high performance oil cooler fan 4"

#970762

Stock:Yes

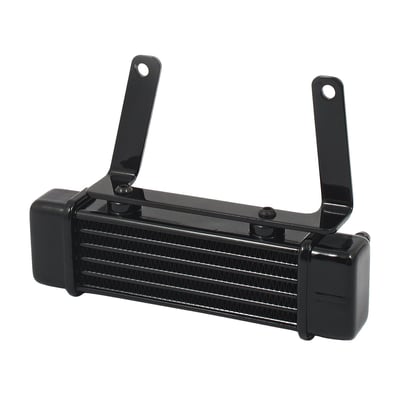

Black. Non-fan assisted. Horizontal frame mounted. Kit includes the oil cooler, mounting hardware, thermostat equipped offset oil filter adapter, oil hose and oil hose clamps. Nothing else required for a successful installation.
Jagg

Jagg, oil cooler kit. Low mount - Horizontal - 6 row

#970778

Stock:Yes

Black. With FAN assisted forced cooling that supply a 50mph (80km/h) breeze, even when idling in a traffic jam. Auto-start via the built-in thermostat that triggers the 4" diameter fan at 210°F / 99°C. Horizontal frame mounted. Kit includes the oil cooler, mounting hardware, thermostat equipped offset oil filter adapter, oil hose and oil hose clamps. Nothing else required for a successful installation.
Jagg

Jagg, oil cooler kit. Low mount - Horizontal - 10 row - Fan

#970788

Stock:Yes

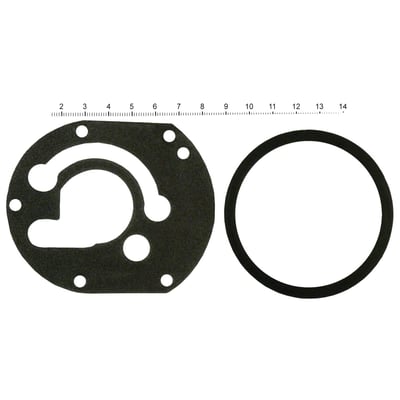

Gasket service kit for 970733 Jagg offset oil filter adapter
Jagg

Jagg, offset oil filter adapter gasket kit

#970727

Stock:Yes

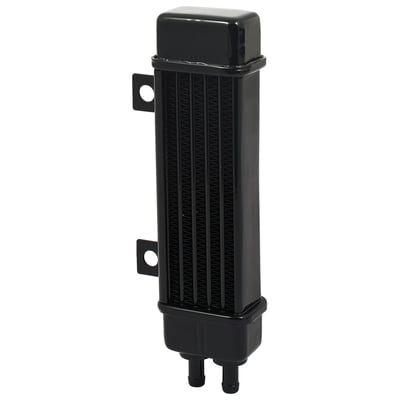

Black. Non-fan assisted. Vertical frame mounted. Kit includes the oil cooler, mounting hardware, thermostat equipped offset oil filter adapter, oil hose and oil hose clamps. Nothing else required for a successful installation. Note: Vertical frame mounted oil coolers may not fit models with lower fairings.
Jagg

Jagg, oil cooler kit. Vertical mount, 6 row, Slimline

#970768

Stock:Yes

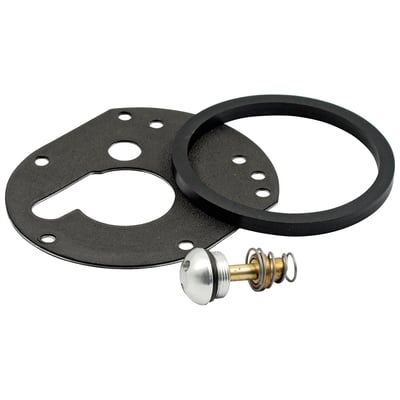

Replacement thermostat for 970733 offset oil filter adapter. Supplied as a complete service kit, with gaskets, used to to install thermostatic actuator in Jagg's 970733 offset oil filter adapter. Kit components are designed to keep the oil by-pass hole open until the oil surrounding the thermostatic actuator reaches 185ºF (85°C). The thermostatic actuator begins movement at 185ºF (85°C) and by 195ºF (90.6°C) closes the by-pass hole completely, sending 100% of the oil to the oil cooler.
Jagg

Jagg, replacement thermostat kit

#970706

Stock:Yes

Manual operated thermostat bypass valve. The oil flow route will bypass the oil cooler to prevent over-cooling the engine oil. Simple in-oil line installation.
Jagg

Jagg, oil cooler bypass valve. Manual

#970730

Stock:Yes

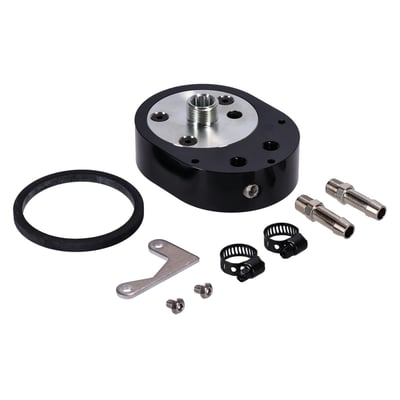

With thermostat. Offset design is required when installing an oil cooler on any TCA (Dyna, Touring) or TCB (Softail) Twin Cam model. It is optional for cooler installation on all fuel injected Evo Big Twins with engine mounted spin-on oil filters for easy access to oil lines. Adapter allows the oil to flow through the filter before entering the cooler, resulting in less restriction. After filtration, the oil will by-pass the oil cooler automatically while the engine warms up to standard operating temperature. Once the bike reaches operating temperature, the thermostatic actuator begins movement at 185ºF (85°C) and by 195ºF (90.6°C) closes the by-pass hole completely and the sends 100% of the hot and filtered oil to the oil cooler, and delivering cooler, clean oil to the engine. Oil flow direction from adapter: oil feeds the oil cooler from the fitting on the left side and returns to the fitting on the right side, as viewed from front with oil filter adapter fittings at bottom. Note: See 970706 for replacement thermostat with gasket service kit and 970727 for the gasket service kit only.
Jagg

Jagg, offset oil filter adapter with thermostat. Black

#970733

Stock:Yes

For mounting oil coolers firmly and also isolating from vibration. Can be used for mounting anything on tubular frames.
Jagg

Jagg, universal oil cooler clamp. 1-1/8", black

#970745

Stock:Yes

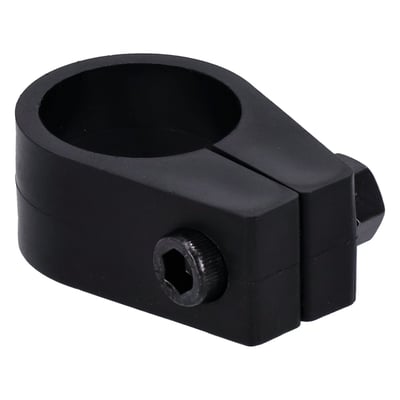

For mounting oil coolers firmly and also isolating from vibration. Can be used for mounting anything on tubular frame tubes.
Jagg

Jagg, universal oil cooler clamp. 1-3/8", black

#970734

Stock:Yes

190 °F (87.8 °C). Stock replacement for Jagg's fan assisted oil cooler kits. Bi-metal operated thermostatic switch. Designed to automatically switch-on/off electric fans. 3/8 NPT threaded.
Jagg

Jagg, miniature automatic fan switch. 190 °F (87.8 °C)

#970763

Stock:Yes

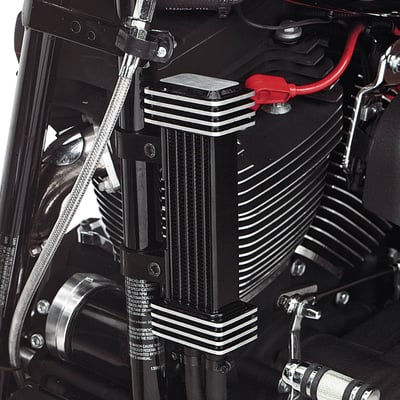

Black. Non-fan assisted. Vertical frame mounted. Kit includes the oil cooler, mounting hardware, thermostat equipped offset oil filter adapter, oil hose and oil hose clamps. Nothing else required for a successful installation. Note: Vertical frame mounted oil coolers may not fit models with lower fairings.
Jagg

Jagg, oil cooler kit. Vertical mount, 6 row, Deluxe

#970767

Stock:Yes

Black. With FAN assisted forced cooling that supply a 50mph (80km/h) breeze, even when idling in a traffic jam. Auto-start via the built-in thermostat that triggers the 4" diameter fan at 210°F / 99°C. Horizontal frame mounted. Kit includes the oil cooler, mounting hardware, thermostat equipped offset oil filter adapter, oil hose and oil hose clamps. Nothing else required for a successful installation.
Jagg

Jagg, oil cooler kit. Low mount - Horizontal - 10 row - Fan

#970787

Stock:Yes

180 °F (82.2 °C). Bi-metal operated thermostatic switch. Designed to automatically switch-on/off electric fans. 3/8 NPT threaded.
Jagg

Jagg, miniature automatic fan switch. 180 °F (82.2 °C)

#970705

Stock:Yes

Required for Jagg 566635 oil filter adapter adapter when used with S&S engines.
Jagg

Jagg, upgrade nut for S&S engines

#970717

Stock:Yes

Black with contrast cut machined aluminum cooling fins. Deluxe 1000 series unit only with mounting tabs. A 6-row oil cooler featuring machined billet aluminum end caps and contrast-cut machined to style match and complement engine cylinder fins. Integrated mounting tabs for easy mounting to the frame tube using Jagg frame tube clamps like: - 970744 1" cooler clamp - 970745 1-1/8" cooler clamp - 970746 1-1/4" cooler clamp - 970734 1-3/8" cooler clamp - 970748 1-1/2" cooler clamp
Jagg

Jagg, universal oil cooler. 6 row. Deluxe 1000 series

#970749

Stock:Yes

Black. SlimLine 5000 series unit with 2 threaded mounting holes for mounting to a bracket. Features the same high quality Jagg oil cooler cores as found in the Jagg oil cooler kits. Perfect for the customizer, builder and racer for any custom project. Includes oil cooler only without mounting hardware.
Jagg

Jagg, universal oil cooler. 6 row. SlimLine 5000 series

#970755

Stock:Yes
