Prevents clutch hub from rotating when installing/removing clutch hub nut.

JIMS, clutch shell lock tool

#978344

Stock:Yes

Used to lock the clutch hub assembly in place when removing and installing the clutch hub nut

JIMS, clutch hub locking tool

#961436

Stock:No

Used to assemble and disassembly the clutch hub assembly. Also installs & removes the ball bearing (MCS 518779 / OEM 37906-90) from the clutch shell/basket without damage to the new bearing by pushing on the outside perimeter of the bearing.

JIMS, clutch hub & basket tool

#978507

Stock:Yes

Used for correctly aligned clutch plates in the clutch shell during installation of the clutch plate pack.

MCS, V-Rod clutch plate alignment assembly tool

#925543

Stock:Yes

Optional nut that makes 960767 clutch spring comrpessor tool compatible with XL Sportster and Buell XB models.

JIMS, clutch spring compressor nut

#970347

Stock:Yes

This tool securely holds clutch hubs on most motorcycles and ATVs. It can be used to remove the locking ring on UTV fuel cells to remove fuel pumps
- Reversible blades work on conventional square spline and on round spline style (KTM/Husqvarna) clutch hubs
- Aircraft grade billet aluminum body with durable blue anodized finish
- Precision machined stainless steel blades are strong and durable
- Billet aluminum clamp knob for fast and easy installation and removal
- Extended knurled handle provides sure grip when removing or torquing the clutch hub nut
- Tool jaws have a range of 75mm (2.9") to 120mm (4.72")

Motion Pro, heavy duty clutch holding tool

#954364

Stock:Yes

Tool to help install and remove the clutch spring retaining ring. Repl. 34761.

JIMS, clutch spring compressor tool

#512669

Stock:Yes

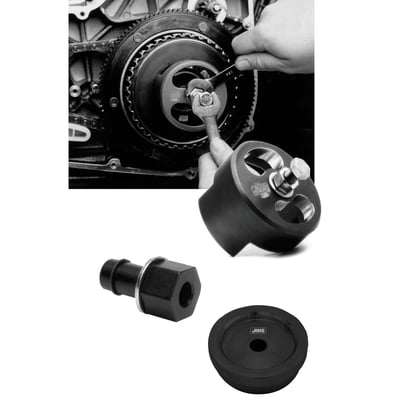

Tool to help install and remove the clutch spring retaining ring.

Note: See 970347 for the optional adapter nut that is required for this tool to function on XL Sportster and Buell models.

JIMS, clutch spring compressor tool

#960967

Stock:Yes

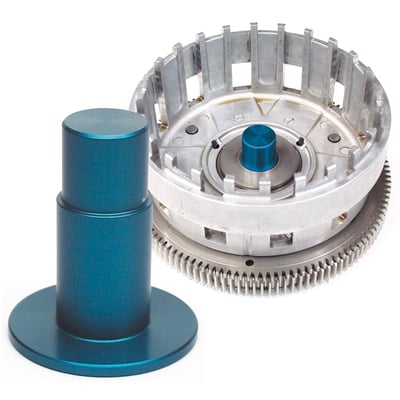

Used to align the clutch plates during assembly of the clutch basket.

JIMS, V-Rod clutch plate alignment tool

#978446

Stock:Yes

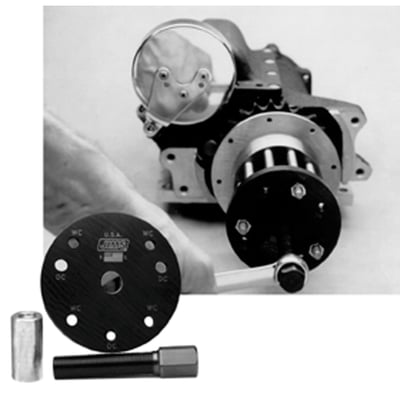

Used to pull the clutch hub from the mainshaft. For both wet and dry clutches. Included 4 bolts for dry clutch removal. Repl. 95960-52C.

JIMS, clutch hub puller tool

#998009

Stock:Yes

Used to release clutch spring for removal and installation of retaining ring. Includes adapter for Sportster models

Motion Pro, clutch spring tool

#547203

Stock:No

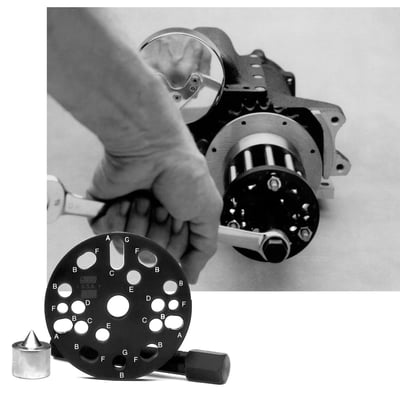

Multi-purpose tool. Used to pull, amongst others, clutch hubs. This puller is numbered for pulling the following items.
A 45" Flatheads - Clutch.
B Big Twin - Clutch, all 3, 5 and 10 finger hubs.
C Big Twin - Alternator cover.
D Sportster - Transmission sprocket.
E Big Twin - Motor sprocket.
F Sportster - Clutch (early).
G Sportster - Clutch (late).

JIMS, multifunctional clutch hub puller tool

#978348

Stock:Yes

Use to remove clutch hub from the transmission mainshaft.
Slight tap onto the transmission mainshaft to remove clutch hub.
Left-hand thread.

MCS, clutch hub removal tool

#925573

Stock:Yes

Enables holding/tightening the mainshaft (jam)nut while adjusting/holding the pushrod adjuster screw in the correct position with the supplied allen wrench / hex key.

JIMS, clutch jam nut adjusting tool

#978645

Stock:No

Used to release clutch spring for removal and installation of the clutch spring retaining ring. An adapter for XL Sportster models is included.

MCS, clutch spring compressor tool

#925520

Stock:Yes

Used to ream upper (33291-36) and lower (33290-38) bushings of the clutch finger shaft (37074-38A), as used in the kickstart cover (transmission end cover) of 4-speed Big Twins, to factory specs.

Adjustable reamer tool, clutch release shaft

#530865

Stock:No

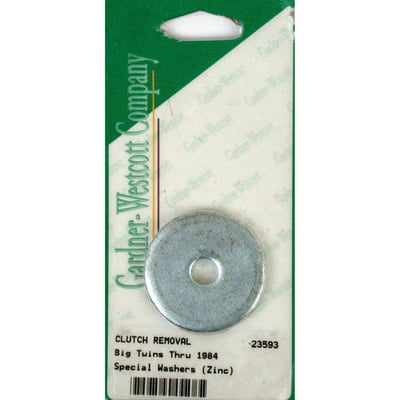

Used to compress and hold the clutch springs on 4-speed, and pre-84 5-speed, so that the pressure plate, springs and spring retainer can be removed as one unit.

Gardner-Westcott, clutch spring washer tool

#993593

Stock:No

Used to counterbore OEM clutch baskets to install the 46/49 tooth Evolution Industries basket sprocket & ring kits

Evolution Industries, counter bore tool

#552032

Stock:Yes

Used to release clutch spring for removal and installation of retaining ring.

Note: Order 979430 adapter separately for use on XL Sportster models.

George's Garage, clutch spring compressor

#979429

Stock:Yes

- Used to pull the clutch hub from the tapered transmission mainshaft
- Compatible with all 3-stud OEM and custom 5 and 10-stud clutch hubs
- Replacement for OEM 95960-41A tool.

MCS, clutch hub puller tool

#951568

Stock:Yes
