S&S, M8 132/136" big bore cylinder & piston kit. HC +8.5cc

S&S

S&S, M8 132/136" big bore cylinder & piston kit. HC +8.5cc

Item No:

709940

Brand:

S&S

UM:

kit

Catalog(s):

V-Twin

New

Availability: No

Description

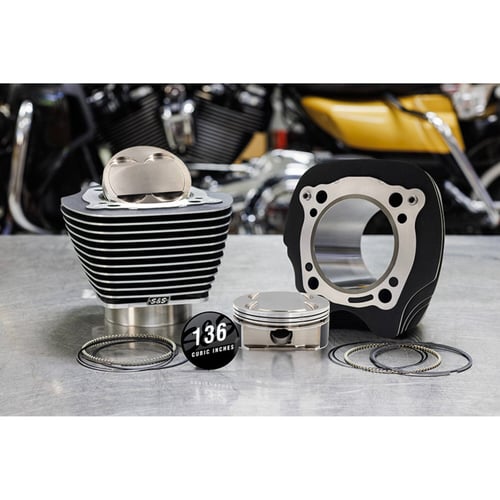

High compression. Black Granite cylinders with highlighted fins. With +8.5cc piston dome. Compression ratio 12.7:1 for 132" and 13.1:1 for 136" with stock 88cc heads. Compression ratio 12.1:1 for 132" and 12.3:1 for 136" with SE Extreme Port 94cc heads. Largest possible 4.320" bore bolt-in big bore kit. 132" (2162cc) is achieved when used with stock 114" flywheels. 136" (2222cc) is achieved when used with S&S 923270 4-5/8" stroker flywheels. Works with stock crankcases, case boring is not required, stock heads and retains stock engine height. Kit includes a forged 4.320" big bore forged piston kit, 4.320" big bore cylinders, 2 MLS (Multi-Layer-Steel) .040" head gaskets, 2 cylinder base gaskets, 4 cylinder dowels, exhaust gaskets and an S&S cubic inch cam cover badge. Black powder coated finish to match the OEM finish. Note: For the 132" kit S&S measured 135.51HP and 145.83 torque with stock heads, a 550 cam, stock throttle body and a high flow Stealth air cleaner kit. Note: Tuning of fuel injection and ignition may be required. Note: S&S advises 576972 S&S head bolt kit for all big bore applications. Note: 136" is not compatible with OEM 4-5/8" stroke flywheels, must use S&S 923270 4-5/8" stroker flywheels. Note: Not compatible with 107" (4.375" stroke) engines. Note: Special Order Product only. To order please contact your MCS sales representative.

Fitment

17-24 114" M8 Models; 17-24 M8 models with S&S 923270 4-5/8" (4.625" ) stroker flywheels (excl. CVO) (NU)
