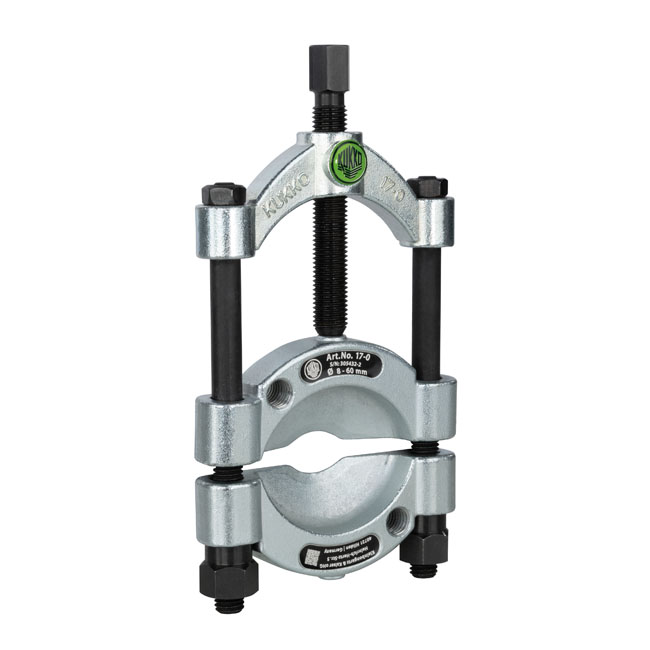

Kukko, separator with quick clamp spindle

With quick clamp pressure spindle. Used with hand tools to pull ball bearings, roller bearings and inner races from a shaft where the bearing is installed tightly to another surface, so there is not enough room to use regular pulling jaws. When tightened, the bearing separator will pinch-in between the bearing and the surface making it possible to pull the bearing from the shaft. Note: Note: 951077 bearing separator will require the use of 951040 puller. Separator and puller are sold separately. - Build Series: 17 - Diameter of Shaft: 12-75mm - Side Screw Length: 75mm - Weight: 1.465kg - Space Below: 0mm - Space Next To It: 75mm - Spread: 12-75mm - Dept: 200mm - With quick-clamping pressure spindle - The sharp blades enable flush parts to be removed where pulling jaws cannot be used - The wedge-shaped separator jaws are secured underneath the component to be removed - The large supporting surfaces protect the parts to be pulled - For use with build series 18 puller - Easy to use, as the separator jaws are quickly and centrally tensioned with just one pressure spindle - Ultimate stability when removing, as the separator and pulling device are screwed firmly together

Fits: >
